Multi-port 10/40/56 GbE Adapters

The St. Helens and Fuji multi-port 10/40/56 gigabit Ethernet adapters enable today's most powerful servers to deliver the highest network performance possible. By implementing a PCIe Gen3 x16 lane interface to the host CPU, the St. Helens and Fuji adapters are capable of an aggregate of up to 100 Gbps half-duplex, thereby reducing or eliminating the network I/O bottleneck.

Ideally suited for space and slot constrained network appliances and virtualized servers, the high throughput capability of the St. Helens and Fuji adapters exceed the bandwidth of all other x8 lane based dual-port 40GbE adapters by 45 to 100%.

featured productst helens 160
Products

St. Helens 200G4Q-XL

Part NumberBus TypeNumber of PortsEthernet ControllerMedia ConnectorAggregate ThroughputDownload St. Helens DatasheetInquire
4QF3AD0A1PCI-e 3.0, x164x40GbE
1x40GbE + 4x10GbE
8x40GbE
Intel XL710QSFP+100 Gbps

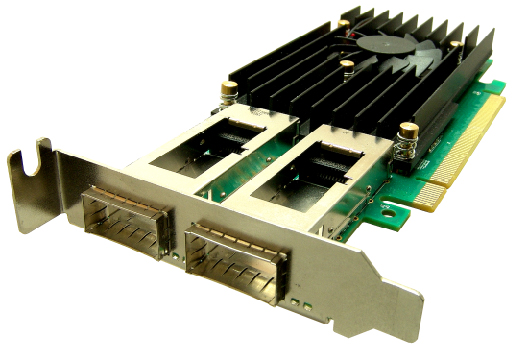

St. Helens 160G2Q-XL

Part NumberBus TypeNumber of PortsEthernet ControllerMedia ConnectorAggregate ThroughputDownload St. Helens DatasheetInquire
2QF3AC0A1PCI-e 3.0, x162x40GbE
1x40GbE + 4x10GbE
8x40GbE
Intel XL710QSFP+80 Gbps

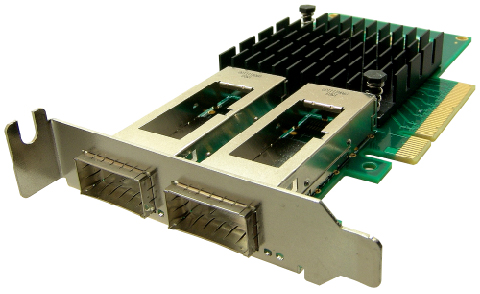

St. Helens 100G2Q-XL

Part NumberBus TypeNumber of PortsEthernet ControllerMedia ConnectorAggregate ThroughputDownload St. Helens DatasheetInquire
2QF38D0A1PCI-e 3.0, x82x40GbE
4x10GbE
Intel XL710QSFP+50 Gbps

St. Helens 80G1Q-XL

Part NumberBus TypeNumber of PortsEthernet ControllerMedia ConnectorAggregate ThroughputDownload St. Helens DatasheetInquire
1QF38C0A1PCI-e 3.0, x81x40GbE
4x10GbE
Intel XL710QSFP+40 Gbps

Fuji 240G3Q

Part NumberBus TypeNumber of PortsEthernet ControllerMedia ConnectorAggregate ThroughputDownload Fuji DatasheetInquire
3QF3A60A1PCI-e 3.0, x163 QSFP+Mellanox ConnectX-3QSFP+100 Gbps

Fuji 160G2Q

Part NumberBus TypeNumber of PortsEthernet ControllerMedia ConnectorAggregate ThroughputDownload Fuji DatasheetInquire
2QF3A60A1PCI-e 3.0, x162 QSFP+Mellanox ConnectX-3QSFP+80 Gbps
